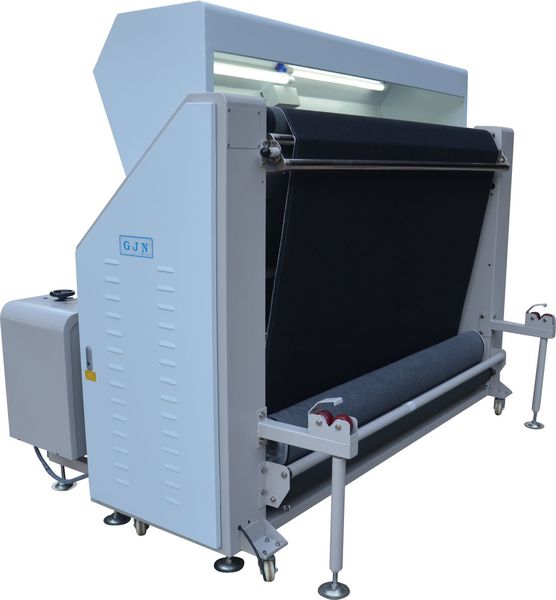

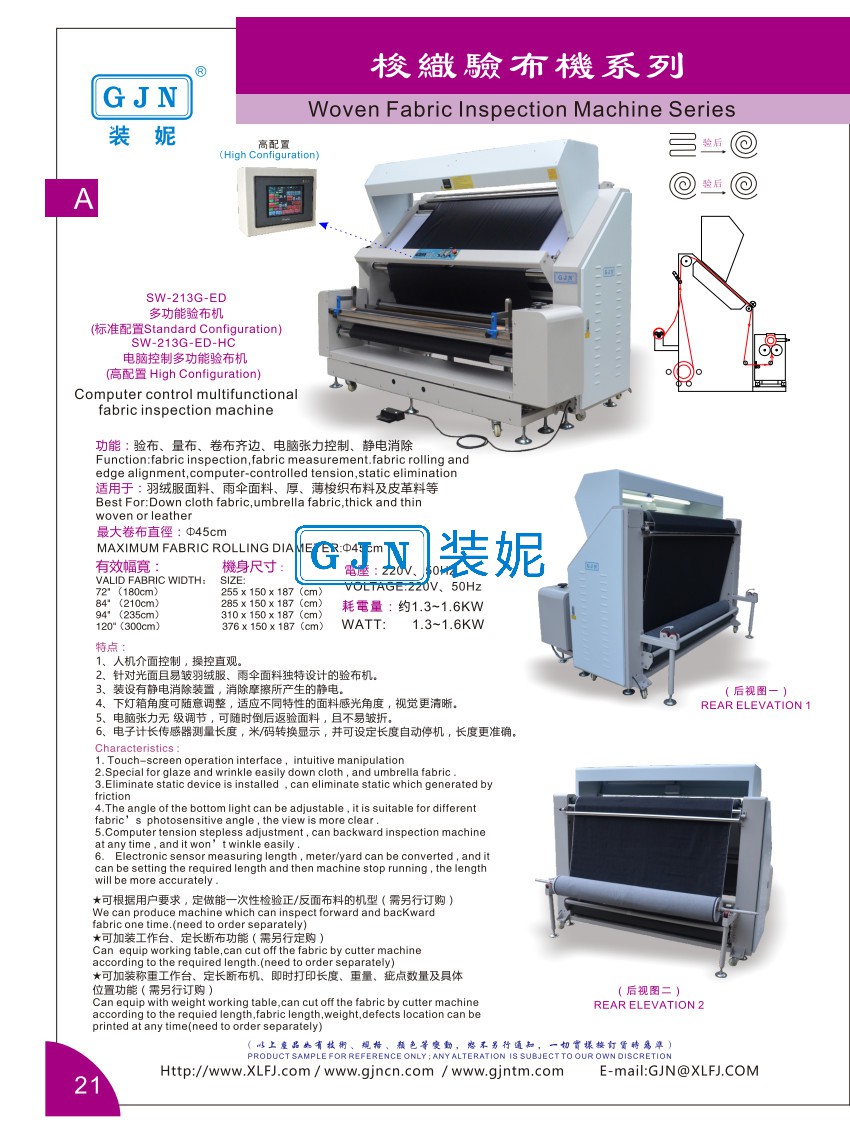

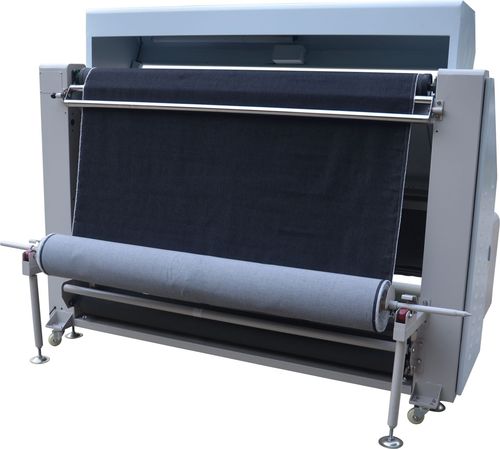

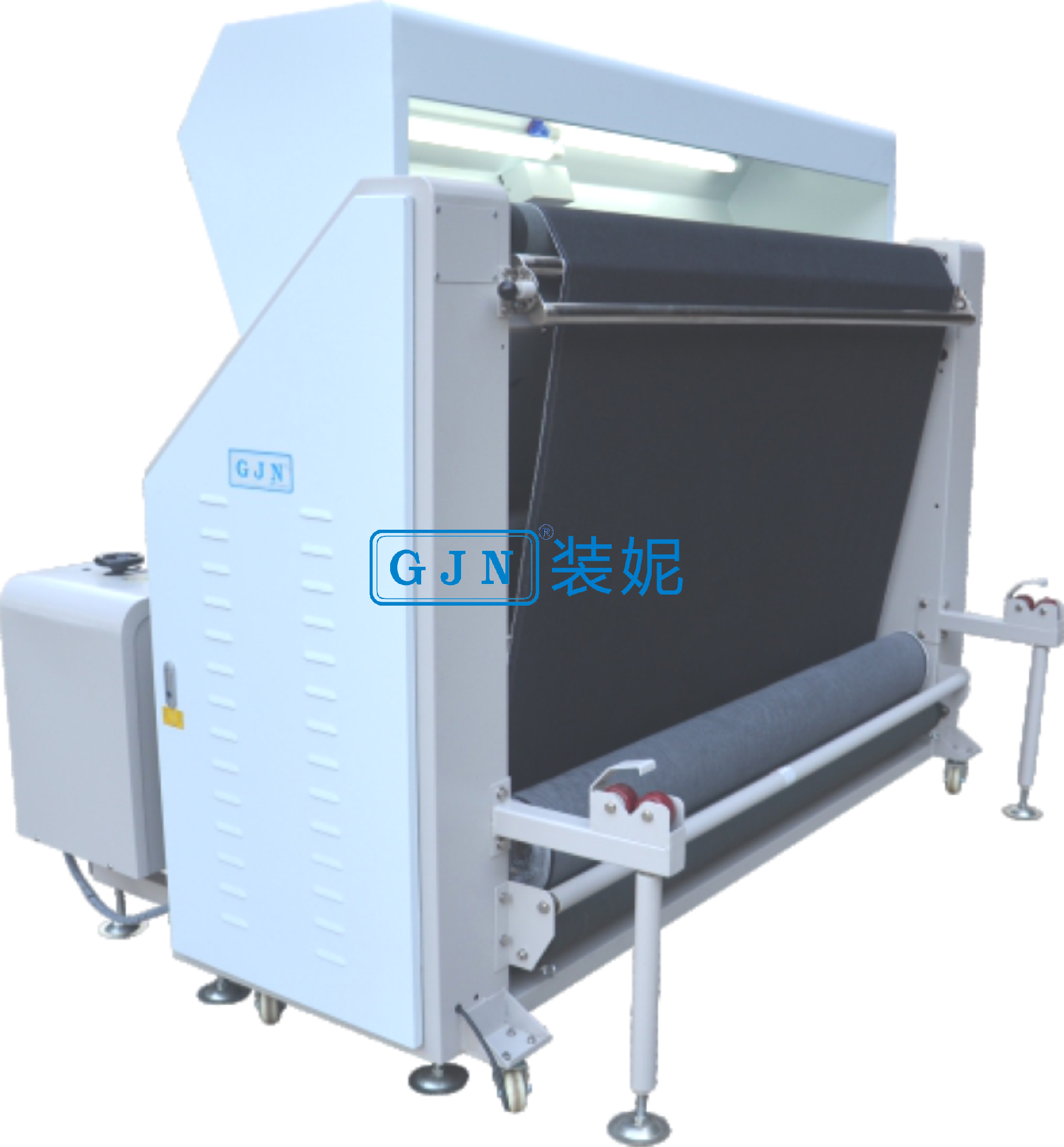

SW-213G-ED 多功能自动对边验布机

SW-213G-ED 多功能自动对边验布机

(标准配置Standard Configuration)

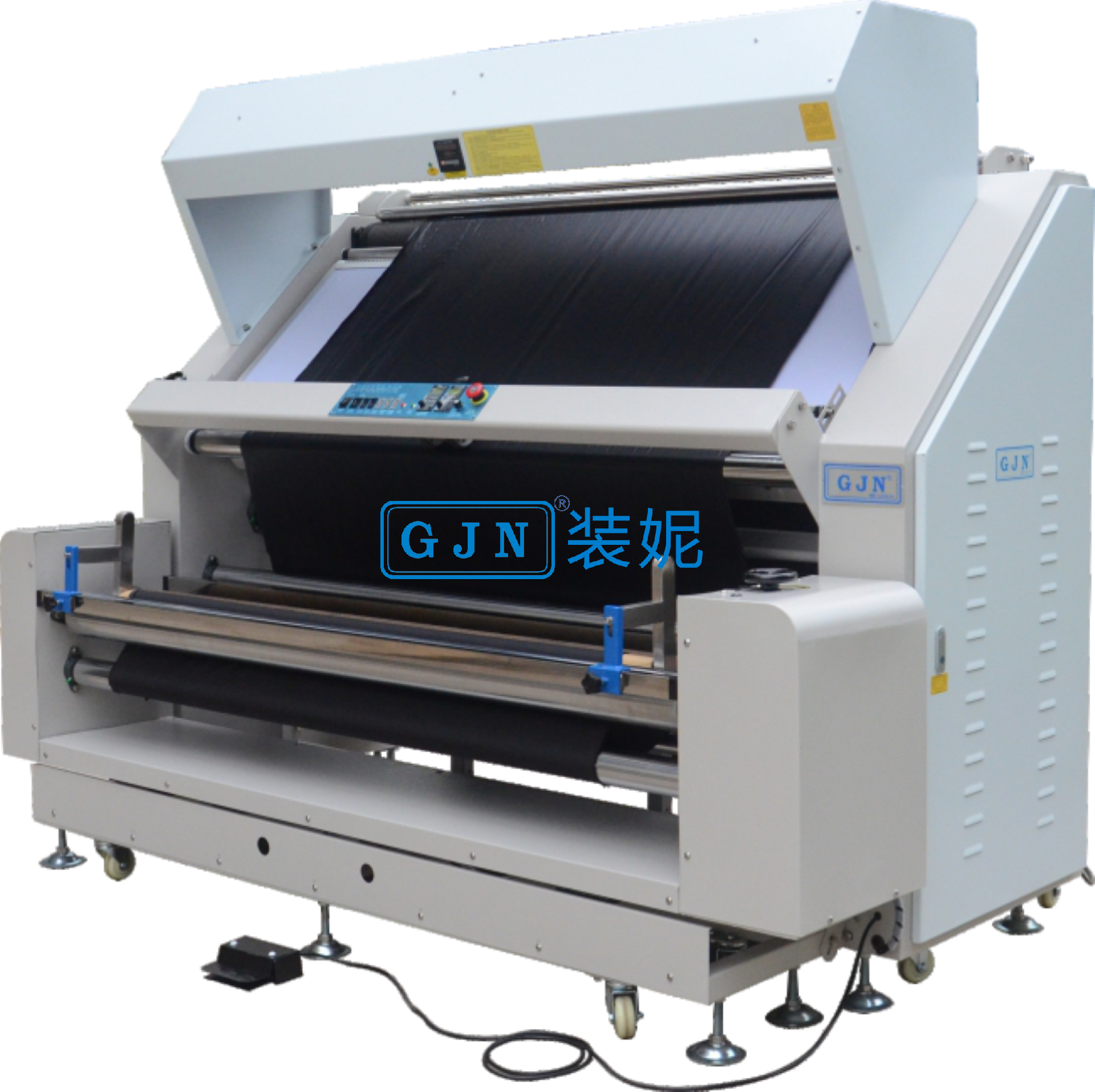

SW-213G-ED-HC

电脑控制多功能验布机

(高配置 High Configuration)

Computer control multifunctional

fabricinspection machine

功能：验布、量布、卷布齐边、电脑张力控制、静电消除

Function:fabric inspection,fabric measurement,fabric rolling and

edge alignment,computer-controlled tension,static elimination

适用于：羽绒服面料、雨伞面料、厚、薄梭织布料及皮革料等

Best For:Down cloth fabric,umbrella fabric,thick and thin

woven or leather

最大卷布直径：Φ45cm

MAXIMUM FABRIC ROLLING DIAMETER:Φ45cm

耗电量：约1.3~1.6KW

WATT: 1.3~1.6KW

有效幅宽：           机身尺寸：

VALID FABRIC WIDTH：   SIZE:

72"（180cm）         255 x 150 x 187（cm）

84" （210cm）        285 x 150 x 187（cm）

94" （235cm）        310 x 150 x 187（cm）

120"（300cm）        376 x 150 x 187（cm）

★可根据用户要求，定做能一次性检验正/反面布料的机型（需另行订购）

We can produce machine which can inspect forward and backward

fabric one time.(need to order separately)

★可加装工作台、定长断布功能（需另行定购）

Can equip working table,can cut off the fabric by cutter machine

according to the required length.(need to order separately)

★可加装称重工作台、定长断布机、即时打印长度、重量、疵点数量及具体

位置功能（需另行订购）

Can equip with weight working table,can cut off the fabric by cutter machine

according to the requied length,fabric length,weight,defects location can be

printed at any time(need to order separately)
